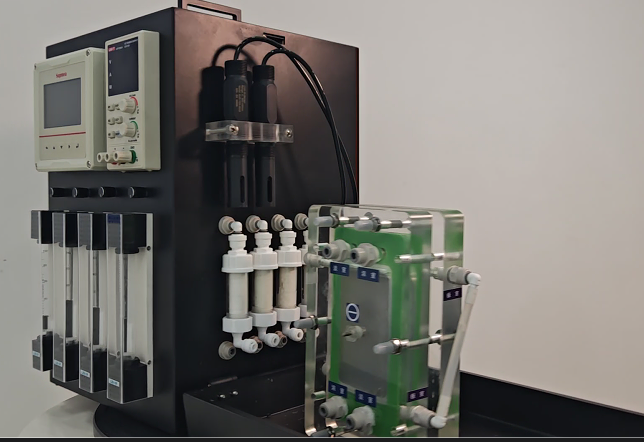

HKED-3CM-SE standard electrodialysis experimental apparatus

Category：

Electrodialysis technology is efficient, energy-saving, and environmentally friendly, and is widely used in chemical purification, biomedicine, wastewater treatment, seawater desalination, and food processing. The HKED-3CM-SE electrodialysis experimental machine has the functions of ordinary electrodialysis and bipolar membrane electrodialysis. It is easy to operate and the experimental results are accurate and reliable.

Keywords：

HKED-3CM-SE Standard Electrodialysis Experimental Machine Electrodialysis Experimental Machine Experimental Machine Electrodialysis

Tel：

HOTLINE：400-678-1829

ZHANG GONG：+86-18865361829

CONSULT

OTHER PRODUCTS

Detail

Applicable Scope:

This experimental machine can be used for chemical desalination and purification, and concentration experiments; it can also be used for desalination and purification of biochemical products, namely the separation of electrolytes and non-electrolytes. It can achieve the transformation from organic salts to organic acids, from organic salts to organic acids and bases, and from inorganic salts to inorganic acids and bases.

Many of these materials are highly saline, strongly acidic, strongly alkaline, highly corrosive, or even toxic materials. There are great hidden dangers in long-distance transportation or express delivery. If leakage accidentally contaminates goods or the environment, the logistics company or the commissioning unit may face huge compensation or fines; owning an experimental machine is very necessary.

This type of experimental machine is suitable for colleges and universities, scientific research institutes to conduct teaching and research on chemical separation, ion exchange, and bipolar membrane hydrolysis reaction experiments. It can also be used for the separation of chemicals in factories and mines, the treatment of chemical mother liquor and waste liquid, to achieve standard discharge, reuse of useful substances, reduce the discharge of chemical waste liquid, and realize the closed-loop circulation of the production process. Of course, environmental protection companies involved in industrial wastewater treatment also need to own one. HKED-3CM Electrodialysis Experimental Machine This adds a lot of certainty to team project contracting. Enterprises can rely on the experimental machine to form a full-chain competitiveness of "process development-resource recovery-carbon asset operation", becoming a benchmark in the circular economy field.

Technical Value : Breakthrough the bottleneck of complex material separation, metal recovery rate >98%, salt separation purity >99.2%;
Economic Value : Resource recovery covers 60-80% of operating costs, and the investment return period is shortened to 2-3 years;
Strategic Value : Build a technical barrier through data assets, seize the opportunity in the hundreds of billions of yuan market of lithium battery recycling and electronic waste liquid, and increase the gross profit margin by 15-20 percentage points compared with peers.

Equipment Features:

1. Complete functions, simple operation;

2. Equipped with various functional components, which can be selected according to actual needs;

3. Foldable body, clever membrane stack leakage collection tank structure is convenient for laboratory or outdoor experiments;

4. Stainless steel + heavy anti-corrosion body, corrosion-resistant and durable;

Equipment Advantages:

Integrated and efficient: The innovative integrated conductivity meter and DC power supply greatly save experimental space, make operation more convenient, and significantly improve experimental efficiency. Efficient, stable, accurate, and reliable: Integrated design reduces equipment connection loss, more stable performance, and more accurate data. Complete equipment, everything you need: Equipped with pumps, flow meters, filters, pressure detection, etc., to meet experimental needs in one stop. Leakage prevention upgrade, worry-free use: Equipped with a foldable expansion slot to effectively prevent liquid leakage, keep the laboratory clean, and provide strict protection for your experimental operation.

Model		Pilot Type HKED-8-20	Product Type HKED-32-100	Product Type HKED-60-200	Product Type HKED-60-120x3	Product Type HKED-60-120×5
Membrane Stack Parameters	Membrane Size (cm)	20×40	40×80	55×110	55×110	55×110
	Effective Membrane Size (cm)	17×32	35×69	48×99	48×99	48×99
	Effective Membrane Area (cm²)	544	2415	4752	4752	4752
	Number of Membranes	20	100	200	360	600
	Negative /Total Area of Anion and Cation Membranes (m²)	3.2	64	242	435.6	726
	Diaphragm Thickness (mm)	0.55	0.70	0.70	1.10	1.10
Size and Weight	Equipment Size (cm, excluding fittings)	25W×45H×11T	46W×88H×28T	65W×130H×52T	92W×131H×362L	92W×131H×442L
	Equipment Size (cm, including fittings)		46W×88H×62T	65W×130H×86T
	Equipment Weight (kg, including water)	13	170	640	2600	3300
Fitting Interface	Diluted Liquid /Concentrated Liquid	3/8 hose	DN32 PVC	DN32 PVC	Rc 1	Rc 1
Fitting Interface	Cathode Liquid /Anode Liquid	3/8" hose	Rc 1/2	Rc 3/4	Rc 3/4	Rc 3/4
Flow Parameters	Diluted Liquid /Concentrated Liquid	250 L/hr	3.5 m³/hr	10 m³/hr	18 m³/hr	30 m³/hr
Flow Parameters	Cathode Liquid /Anode Liquid	100 L/hr	2.0 m³/hr	2.5 m³/hr	3.5~4.0 m³/hr	3.5~4.0 m³/hr
Desalination capacity	Current (A)	21.76	96.6	190	190	190
	Current density (A/m²)	400	400	400	400	400
	Desalination capacity (kg/hr, calculated as NaCl)	0.66	14.7	58.0	105	174
